Q3MEM-4MBS Memory card
MITSUBISHI Q3MEM-4MBS Manual And Instructions
Q3MEM-4MBS datasheetPDF datasheet
Q3MEM-4MBS datasheetPDF datasheet
Q3MEM-4MBS Instruction manual
Q3MEM-4MBS Detailed Manual
MITSUBISHI Q3MEM-4MBS Product information and technical parameters：
Brand: MITSUBISHI
Name: Memory card
Model: Q3MEM-4MBS

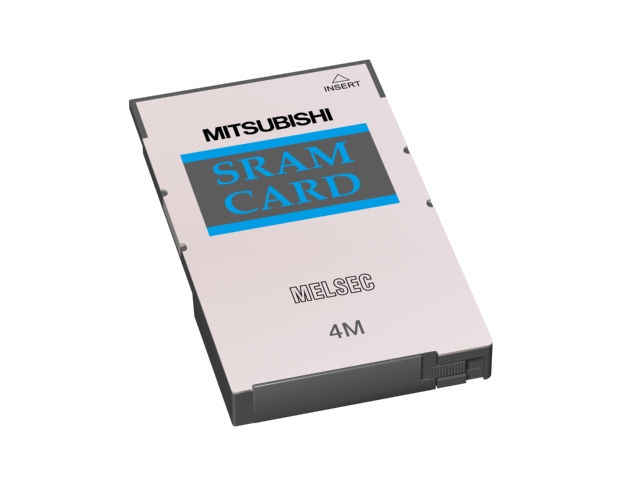

SRAM memory card, capacity: 4M bytes.
Size: 74*42.8*8.1mm
Weight: 15g.
Support SD memory card.
High speed universal QCPU support SD memory card,
In order to be able to have a memory card port between SD and PC to easily realize data exchange.
In addition, the SD memory card and the extended SRAM card can be used simultaneously.
Therefore, the extension of the file register using the extended SRAM card,
SD memory card can be used at the same time to carry out the data file record, a large number of annotation data storage, through the memory card to guide operation.
Better user experience data recording function.
Easy to record, no need to program.
Simply through the special configuration tool wizard to easily complete the settings,
The collected data can be saved in CSV format to SD storage card.
Can be effectively used to save the CSV file to facilitate the creation of a variety of reference materials,
Including daily reports, generate reports and general reports.
These data can be applied to the data analysis, tracing, etc..
To record the change of control data without missing.
Data can be collected in a time interval or in a millisecond time interval,
To record the change of the specified control data without any omission.
Therefore, in the event of failure, can quickly determine the cause, the precise action analysis.
