MITSUBISHI Q04UDEHCPU Product information and technical parameters：
Brand: MITSUBISHI
Name: With Ethernet CPU

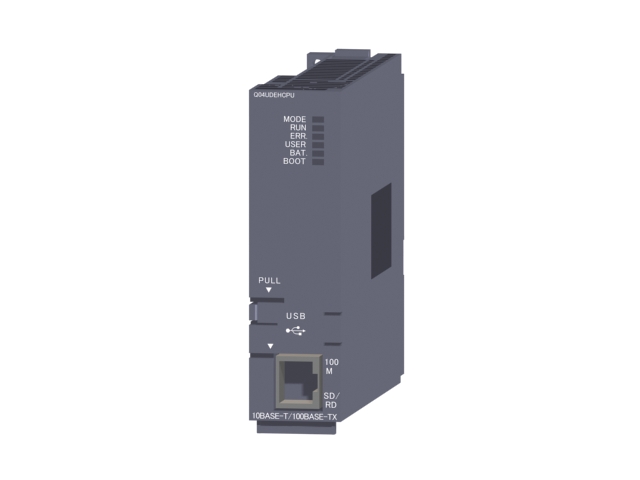

Model: Q04UDEHCPU
Input / output points: 4096 points.
Number of input and output elements: 8192.
Program capacity: 40 K step.
Processing speed: 0.0095 s.
Program memory capacity: 160 KB.
Support USB and network.
Support installed memory card.
Providing high speed communication between multiple CPU.
Shorten the fixed scan interrupt time, high precision device.
The minimum interval of the fixed period interrupt program is reduced to 100 s.
The high speed signal can be accurately obtained, which makes the contribution to the higher precision of the device.
High speed and high precision machine control by multi CPU.
By parallel processing of the linear and multi CPU high-speed communication (cycle 0.88ms) of the parallel control program, the high speed control.
Multi CPU high speed communication cycle and motion control synchronization, so it can achieve the maximization of computing efficiency.
In addition, the latest movement control CPU in performance is 2 times the previous model,
To ensure high speed and high accuracy of the machine control.
