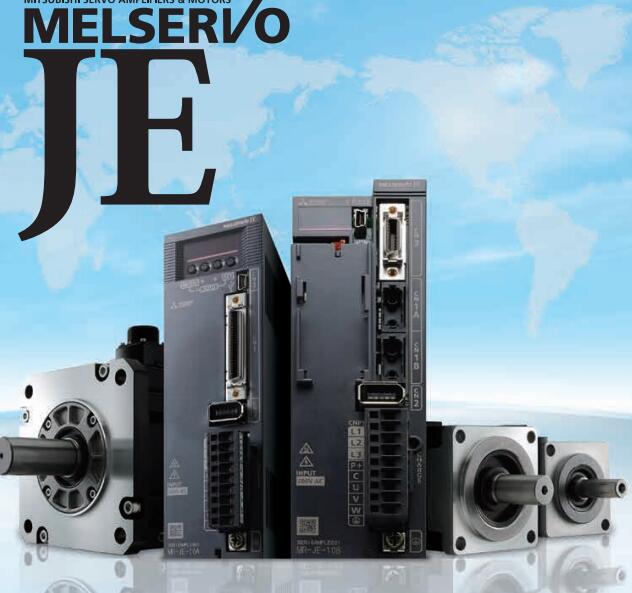

MR-JE-100B amplifier
MITSUBISHI MR-JE-100B Manual And Instructions
MR-JE-100B datasheetPDF datasheet
MITSUBISHI MR-JE-100B Product information and technical parameters：
Brand: MITSUBISHI
Name: amplifier
Model: MR-JE-100B
MITSUBISHI universal AC servo amplifier MELSERVO-JE series.
Rated output: 1.0kw.
Interface: SSCNETIII/H.
Compatible motor: HG-KN102J-S100, HG-KN102BJ-S100.
Superior basic performance and advanced ease of use, to promote the process of equipment servo.
MR-JE-B support servo network.
Advanced performance and ease of use.
In order to allow you to build advanced drive control system,
MITSUBISHI motor will provide you with a full range of servo amplifier, servo motor, programmable controller, positioning module, display, and even advanced solutions.
In the global support system, including the purchase of products to the after-sales service, the performance of MELSERVO-JE will play to the extreme in the world.
Support servo system network SSCNETIII/H.
Can achieve the system of high response speed, multi axis, the performance of the synchronization, the line of the line.
In addition, the encoder can be used as an absolute position encoder in a servo motor.
The absolute position detection system.
At the same time, the high performance of the equipment can be realized by the simple movement module, such as the mark detection, the electronic cam, the advanced synchronization control function and so on.
