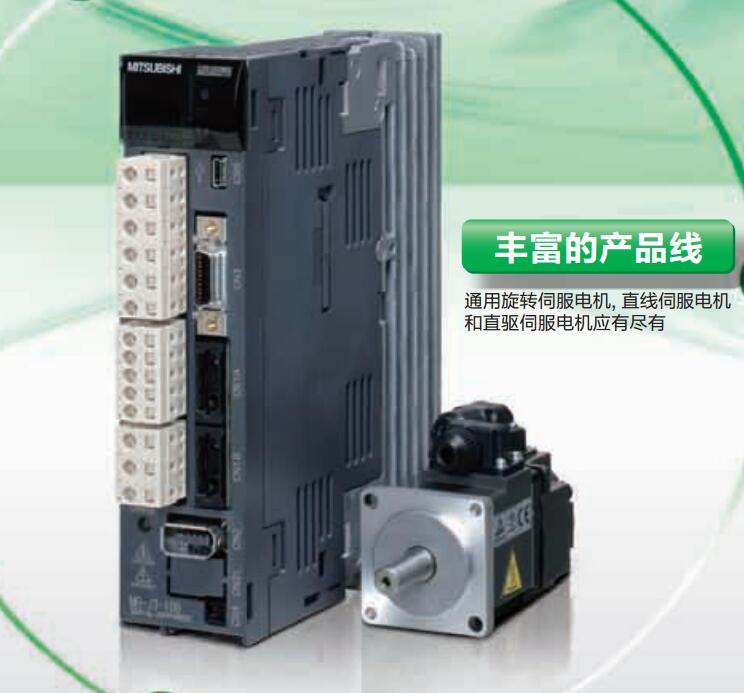

MR-J3-350A4 Universal pulse interface driver
MITSUBISHI MR-J3-350A4 Manual And Instructions
MR-J3-350A4 datasheetPDF datasheet
MITSUBISHI MR-J3-350A4 Product information and technical parameters：
Brand: MITSUBISHI
Name: Universal pulse interface driver
Model: MR-J3-350A4
MITSUBISHI motor universal AC servo amplifier MELSERVO-J3 series.
Rated output: 3.5kw.
Interface type: general pulse interface type.
Power specification: three phase AC400V.
Pulse train and analog input as universal interface.
Can choose the position, speed and torque control mode.
The use of advanced tuning features such as advanced vibration suppression control and adaptive filter,
Greatly improve the performance of the machine.
MR-J3, your partner.
Higher performance, more features, more convenient to use.
Highest performance in the industry.
Speed response frequency up to 2.1kHz.
