"MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 3.5kw.
Built in positioning function.
Voltage: 3 phase AC200VAC or single phase AC230V.
Compatible with "MR-J2S- CP-S084" - servo amplifier and interface unit "MR-J2S-TO1" positioning by CC-Link
Simply setting the point table.
AC servo can be used as the driving source of the field network.

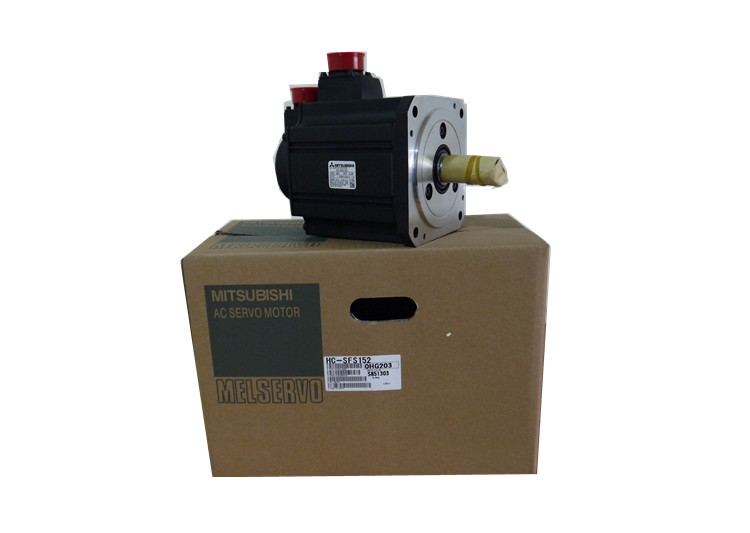

Using servo amplifier built-in positioning function, position data and speed data, you can set the CC-Link HC-SFS152B
Start, stop and display can also be transmitted through the CC-Link.
Serial communication reduces wiring.
AC servo distributed control system can be easily constructed. "Function: CPU module (internal service power supply).
Input and output points: 80 points.
Power supply capacity (DC5V power): 1100mA.
Power supply capacity (DC24V service power supply): 600mA.
Input / output mode: DC input (drain / source) / transistor (source).
Input points: 40 points.
Output points: 40 points.
The new expansion module is more convenient!
Pioneer products with advanced built-in functions and rich extensibility.
FX5U built-in analog, communication, high speed input and output,
By extending the board and adapter can be easily extended system.
In addition, through the high speed system bus,
Can maximize the role of the built-in intelligent functions of the expansion device.
Type: HA-ME series.
Rated output: 0.05KW.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Control complex, easy to achieve intelligent,
The electronic commutation method is flexible and can be changed by square wave or sine wave.
Motor maintenance free, high efficiency, low operating temperature,
Electromagnetic radiation is very small, long life, can be used in a variety of environments.
AC servo motor is brushless motor, which is divided into synchronous and asynchronous motor,
Synchronous machines are commonly used in motion control,
Its power range, you can do a lot of power.
Large inertia, the maximum rotation speed is low, and with the increase of power and rapid reduction.
So it is suitable for the application of low speed and stable operation.
The rotor of the servo motor is permanent magnet,
Drive controlled U/V/W three phase electric electromagnetic field,
The rotor rotates under the action of the magnetic field,
At the same time the motor comes with the encoder feedback signal to the drive,
According to the feedback value and the target value, the driver is compared,
Adjust the rotor rotation angle.
The accuracy of the servo motor is determined by the accuracy of the encoder.
HC-SFS152B Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=HC-SFS152B&select=5
