PCI bus /PCI-X bus.
Support Japanese, English OS.
Multimode fiber optic cable.
Dual loop controller network (control station / common station).
DB A20 AnyWire system uses a separate transmission mode,
Sensor networks to achieve high speed and high reliability.
The transmission distance of 50m/200m/1km/3km can be selected.
1 modules can be up to 512 points of the input, 512 points of output (standard setting) HC-SFS103
Even branch wiring, but also to detect transmission lines.
Province distribution network module in cabinet and device.
Link to connect the 64 stations when the fastest scanning time for 1.2ms (rate 2.5Mbps).
According to the transmission distance, the transmission rate is selected from 2.5Mbps, 625kbps and 156kbps.
CC-Link/LT from the station does not need any parameter settings.
Only need to set up the transmission speed in the master module, you can use the remote I/O.
I/O control in the first class of open field network module.
CC-Link based on reliable field bus technology,
Able to transmit large number of bits data (such as ON/OFF information) and word data (such as analog information).
Consistency of CC-Link to maintain loop transmission,
And the cycle of transmission and information (instantaneous transmission) communication separately, so as to ensure the timeliness of.
Even if the information reaches saturation, it will not affect the link scan time.Type: HF-SE servo motor, medium inertia power.
Rated output power: 2.0kw.
Rated speed: 2000r/min.
Electromagnetic brake: No.
Oil seal: No.
Servo motor can make control speed, position accuracy is very accurate,
The voltage signal can be converted to torque and speed to drive the control object.
Servo motor rotor speed is controlled by the input signal, and can quickly response,
In an automatic control system, used as an actuator,
With electromechanical time constant, high linearity, initiating voltage characteristics,
The signal can be converted into a motor shaft on the angular displacement or angular velocity output.
Divided into DC and AC servo motor two major categories, the main features are,
When the signal voltage is zero, the rotation speed increases with the increase of torque.

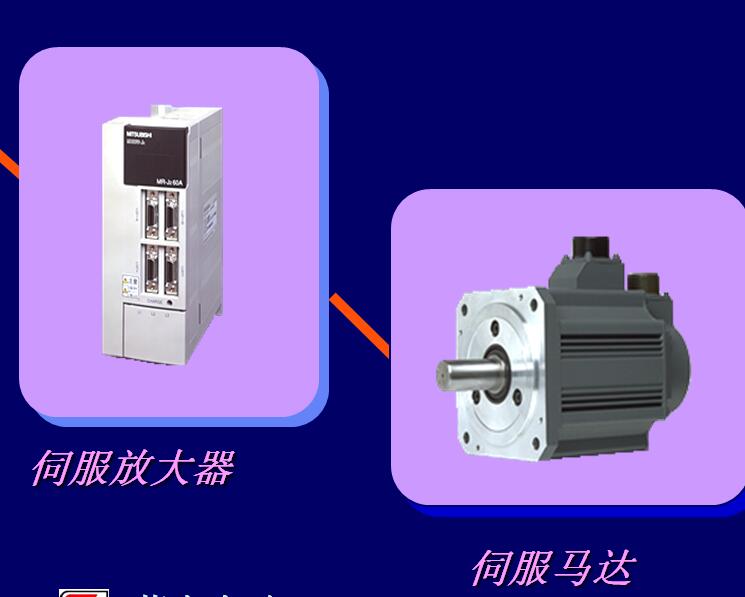

Servo amplifier terminals are used to reduce the required wiring time.
The connector is located in front of the servo amplifier, which is convenient for cable connection.
The gain adjustment can be easily carried out by the real-time automatic tuning function.
Wide use.
Machining equipment and machine tool feed.
Used for food, packaging equipment and feeding device.
For textile machinery, etc..
Can improve the performance of equipment.
High performance and easy to operate, reduce work load.
Enhanced system cost performance.
High performance, high precision positioning (servo motor encoder resolution: 131072).
High response.
Suppression of vibration by adaptive vibration suppression control.
Using personal computer and servo setup software to optimize tuning.
Has 2 types of interfaces:
Position control and speed control with pulse train interface.
The analog input interface is used for speed control and torque control.
HC-SFS103 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=HC-SFS103&select=5
