Analog input points: 4 points (type PT100 sensor).
Rated temperature range: -100~600 degree.
Effective digital output: -1000~6000.
Resolution: 0.2~0.3 degree.
Weight: 0.1kg.
Dimensions: 17.6 x 90 x 89.5.
Analog quantity input adapter for platinum temperature measuring resistor (PT100 3 wire) temperature sensor.
FX3U-4AD-PTW-ADP through 4 channels, can measure the degree of -100~600.
No programming to send data to FX3 series HA-LFS6014
Connect FX3SA, FX3S, FX3GA, FX3G, FX3U,
Need to convert adapter or function extension board. Function: the core function of the condensed display.
Picture size: 3.8 inches.
Resolution: 320 * 128 dot.
Display: TFT monochrome.
Panel color: black.
Power type: DC24V.
Communication interface: RS-232, RS-422/485, or only RS-422.
Small body equipped with ethernet!
Compared with the past, the upgrade of 320 x 128dot 4 x high resolution lcd.
HD LCD screen.
Equipped with TFT monochrome 32 gray level of high resolution liquid crystal, compact body design and display the effect is clear.
1, SD memory card module with the interface.
Can be installed to buy the SD memory card module, save the alarm and log data.
2, USB interface: device USB (Mini-B USB)
Can connect to the computer to transfer data.
3, RS-422/485 interface.
Can be connected to a variety of FA machines, bar code reader.
4, Ethernet interface.
Up to 2 different manufacturers can be connected to the FA machine.
Backlight color variety, equipment status at a glance.
The use of direct 5 color backlight, according to the production of equipment, respectively, the use of backlight color / flicker.

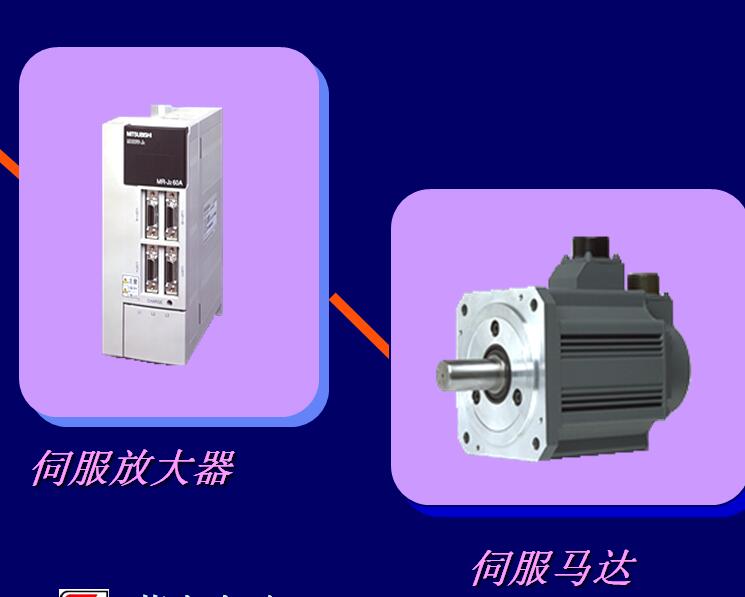

In addition, the control of the backlight can be carried out by connecting the programmable controller. (picture color switching, ON/OFF/ flashing backlight). MITSUBISHI general purpose AC servo amplifier MELSERVO-J2-Super series.
Rated output: 30.0kw.
SSCNET interface.
Voltage: 3 phase AC200VAC or single phase AC230V.
Complete synchronization system with SSCNET high speed serial communication,
The communication cycle between the controller and the servo amplifier is the longest 0.888ms.
Such systems will be able to provide high reliability and high performance.
When connecting the servo system with SSCNET,
In the motion system, the parameters of the servo amplifier and the acquisition of the data will be displayed on the motion controller.
Connect a dedicated cable with an amplifier and a controller to form a SSCNET system.
This simple connection method reduces the routing time and helps to prevent noise.
Even in the MELSERVO-J2-SUPER series products using high resolution coding standards, the command frequency is no limit.
It is only necessary to add a battery on the servo amplifier, which can form the absolute value system.
Currently there are more than 1000000 high reliability SSCNET servo amplifier networks in use.
HA-LFS6014 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=HA-LFS6014&select=5
